WaterGuru SENSE - Replace Cassette
SENSE S2 C5 Cassette
- When new SENSE S2 C5 cassettes are inserted and after completion of the first water measurement, the Supply Levels in the WaterGuru App and Cloud are automatically updated.
- No additional steps need to be performed by the user in the WaterGuru app
SENSE S2 C2 Cassette
- When new SENSE S2 C2 cassettes are inserted and after completion of the first water measurement, the Supply Levels in the WaterGuru App and Cloud are are automatically updated.
- No additional steps need to be performed by the user in the WaterGuru app
SENSE S1 / SENSE S2 Cassettes
When it is time to replace the WaterGuru SENSE cassettes, these messages will be displayed in the App:
- Replace Cassette Soon. This means that there are 5 days (15 pads) remaining.
- Replace Cassette Now. This means that there is 1 day (3 pads) remaining.
IMPORTANT: After you have replaced the Cassette, perform these steps to CLEAR THE ALERT
- Launch the WaterGuru app
- At the Home page, scroll down to Supply Levels
- Next to Supply Levels, an indication of how many weeks of cassette life will appear, i.e. "0%" or “0 days left”
- Tap Replace Cassette
- What is the status of the Cassette? will be displayed with 2 options, Replaced or Not Replaced
- Tap Replaced
- You will see an updated Supply Levels status, i.e. "100%". The status will be updated daily to show how long the new cassette will last, i.e. "2 months left", “3 weeks left”, “4 days left” until the cassette is empty, “0 days left”.
How to Replace SENSE cassette
-
Remove the Sensor unit from the skimmer.
-
Remove the cassette by grasping both sides of the top indented side portion and pulling up.
-

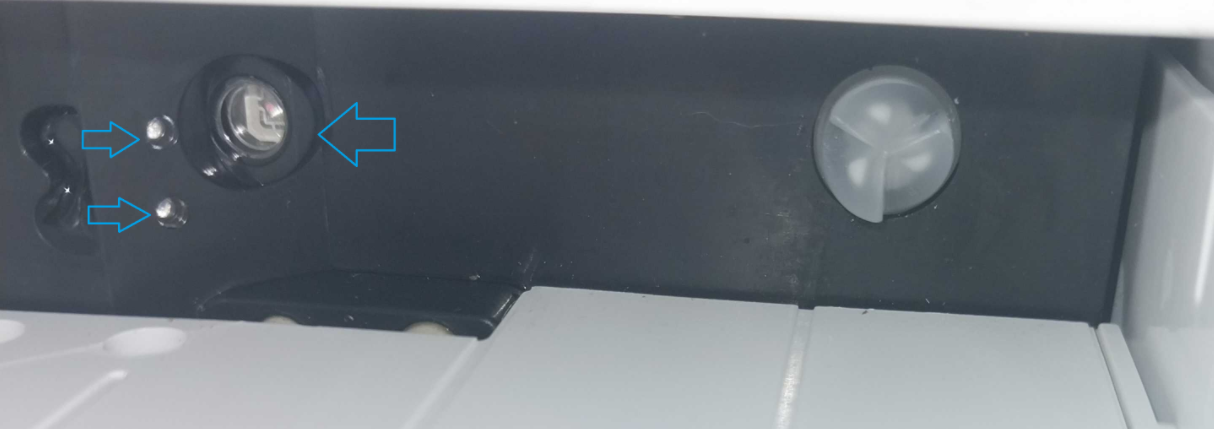

Wipe the optical window clean in the Sensor unit at the bottom of the cassette well. Remove any debris, i.e. insects sand, etc. from the cassette well. Note: The use of the mesh bag is no longer necessary.
-
Insert a new cassette in the Sensor unit all the way until it clicks.
- Place the Sensor unit back in the skimmer with the SENSE cover on top of the skimmer.
